Project Overview

A prime example of the Teratherm Surface in action, this Great Missenden project combines luxury living with industrial-grade engineering. The system heats a 100,000-litre swimming pool, a jacuzzi, and a large helicopter hangar/workshop, all while generating over 200,000 kWh of energy annually.

Generates over 200,000 kWh annually

£48,000 annual cost savings

Heats 480 m² hangar to 19°C

Maintains 100,000L pool at 28°C

Jacuzzi maintained at 38°C

The Challenge

The estate required a heating solution capable of managing diverse and high-demand thermal loads. This included maintaining a 15m x 5m swimming pool at a consistent 28°C year-round, keeping a Jacuzzi at 38°C, and heating a cavernous 480 m² helicopter hangar and workshop to 19°C. The client sought to achieve this without the exorbitant running costs associated with traditional fossil fuel heating.

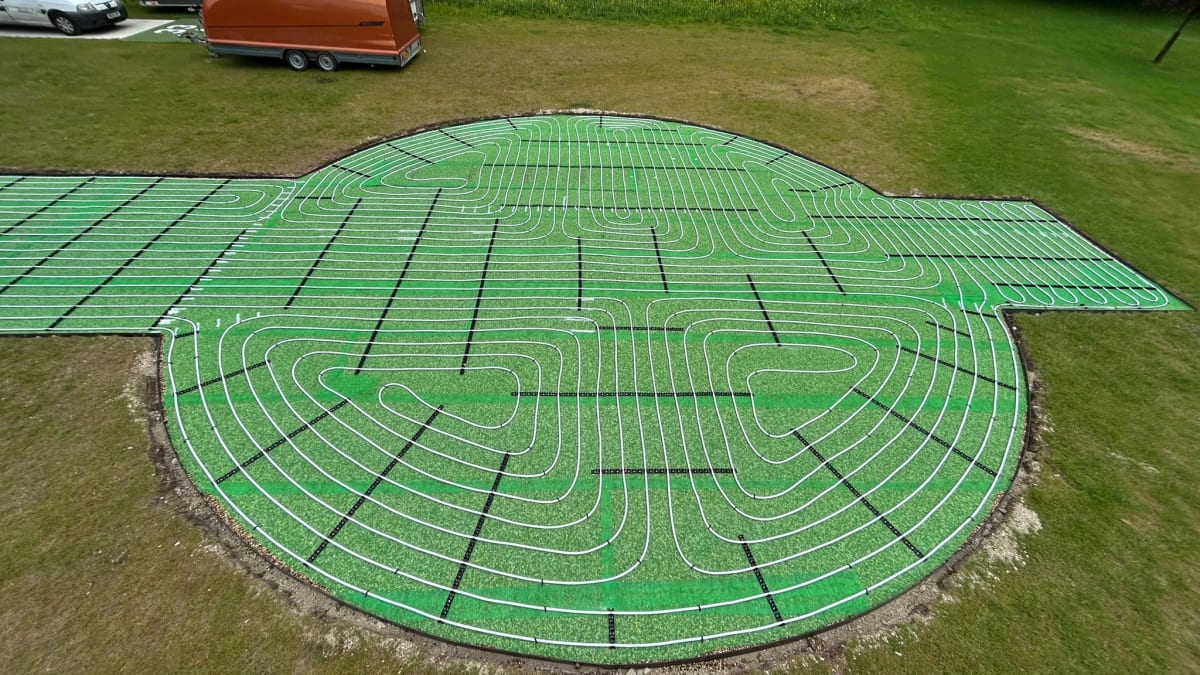

Teratherm Installation Process — Fig 1.0: High-density collector loops installed prior to surface finishing

The Solution

We installed a 300 m² Teratherm system integrated into the estate's driveways and helipad surfaces. The system operates at high efficiency, generating 65-120 Watts per m² to harvest waste heat. This energy is directed to heat pumps that manage the distinct temperature zones: 28°C for the pool, 38°C for the spa, and 19°C for the workshop areas, ensuring optimal performance for both leisure and aviation maintenance.

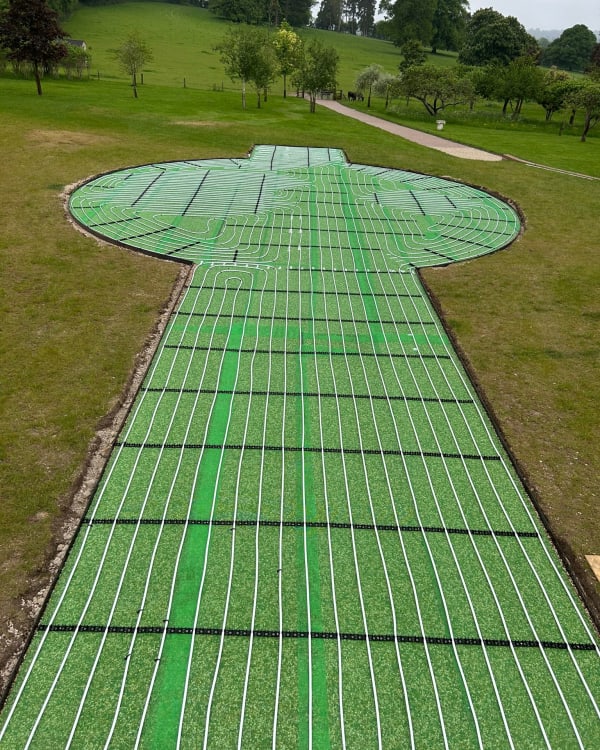

Pathway Energy Collectors — Fig 2.0: Energy collection extends seamlessly into surrounding pathways

The Results

The estate now generates over 200,000 kWh of clean energy annually. Financial performance has been exceptional, with achieved savings of £48,000 against previous energy bills and a total electricity running cost of just over £4,200 per year. The system successfully maintains the 100,000-litre pool and large hangar at target temperatures year-round, significantly lowering the property's carbon emissions.
